Dio 125 X-Edition » Radha Honda

Technology

TFT Screen Display

Advanced and interactive, the TFT meter provides Live mileage and average fuel efficiency, and range (distance to empty), keeping you always informed.

Advanced Idling Stop System

Advanced Idling Stop System Engine automatically comes to a stop whenever the Dio 125 is under 21kmph, saving extra fuel in heavy traffic

PGM-FI Technology

Our sensor-based PGM-FI System constantly injects optimum fuel with air for efficient combustion, delivering consistent power output and improved mileage.

Powerful 125cc Engine

Top-tier power and acceleration to make rides exciting

Silent Start with ACG

The ACG Starter provides a smooth, silent start every time, and reduces engine maintenance

Design

Comfort

Passing Switch

Pass like a boss with an easy-to-use passing switch for high beam, low beam, and passing with a flick.

Double Lid External Fuel Fill

Now no need to get up to get your Dio refilled with a double-lid external fuel fill.

Open Glove Box with USB Type-C Charging Port

A glove box that's amazingly spacious. So, whether it's your sipper or sunglasses, keep all your essentials close.

Safety

Telescopic Front Suspension

Say goodbye to bumpy rides.

Side Stand Engine Cut Off

It automatically shuts off the engine for added safety when the side stand is engaged.

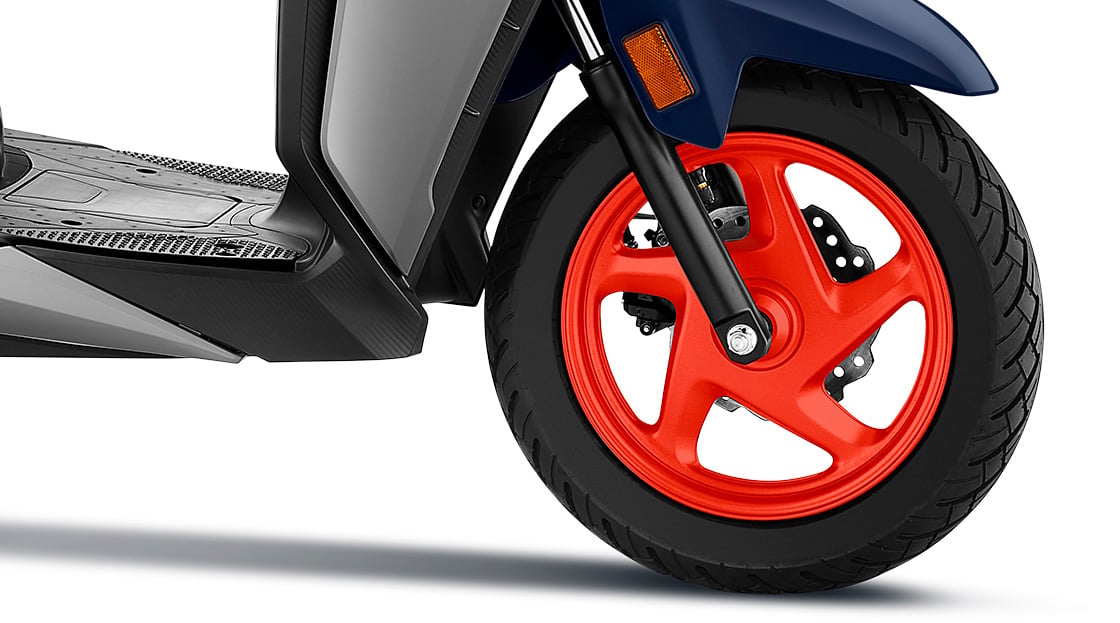

Front Disc Brake

High-performance disc brakes fitted in sleek alloy wheels.

SPECIFICATION

Length:
1830 mm

Width:707 mm

Height:1172 mm

Wheelbase:1260 mm

Ground Clearance:171 mm

Kerb Weight:105 kg

Seat Length:708 mm

Seat Height: 765 mm

Fuel Tank Capacity:5.3 L

Type:4 Stroke, SI Engine

Displacement: 123.92 cc

Max Engine Output:6.11 kW @ 6500 rpm

Max Net Torque:10.5 Nm @ 5000 rpm

Fuel System:PGM-FI

Bore x Stroke:50 X 63.131 mm

Compression Ratio:10:1

Starting Method:Self/Kick Start

Air Filter Type:
Viscous Paper Filter

Clutch Type:
Automatic Centrifugal Clutch Dry Type

Tyre Size & Type (Front):
90/90-12 54J (Tubeless)

Tyre Size & Type (Rear):
90/100-10 53J (Tubeless)

Brake Type & Size (Front):
Disc – 190 mm

Brake Type & Size (Rear):
Drum – 130 mm

Frame Type:Under Bone

Front Suspension: Telescopic

Rear Suspension: 3-Step Adjustable Spring Loaded Hydraulic

Battery:
12 V, 5.0 Ah (MF)

Headlamp:
LED
